Tray Drying. Temperature, Heating.

Introduction

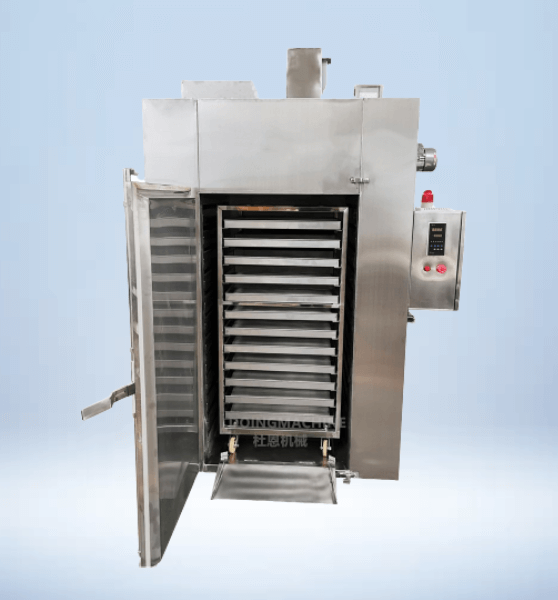

Industrial Tray Dryer

It is constructed in compliance as per customer requirement.

Tray Dryer Chamber is intended for performing different type of test where the temperature of sample environment must be controlled within certain limits. Our policy of continual liaison with leading researchers ensures we maintain our premier position as suppliers of high quality tray dryer machine and associated facilities.

Our Tray Drier, were designed with Safety, Reliability, Ease of operating and ergonomically.

Main Features

  • Test space dimensions are 6 trays to 196 trays.
  • Temperature Range RT +5° C to +250° C.
  • Temperature deviation +/-0.5° C.
  • Temperature Resolution 0.1° C.
  • Temperature Gradient +/- 1° C to 2° C.
  • Average Temperature Raise /Fall 1° C to 5° C.
Thermal Shock Chamber
Thermal Shock Chamber

Chambers Construction

Interior structure made of air tight type. 16 Or 18 SWG 304 grade stainless Steel / CRCA with rust proof paint /Aluminium with adjustable / removable shelving/ Trolly system. Outer external structure made of 16 Or 18 SWG CRCA /GI/ Stainless steel with electrostatic powder super fine coating finishing for a good appearance.Insulation is environmentally friendly free of asbestos and CFC free mineral fiber insulation guarantees the best possible insulation values and hence, it will decrease the operating costs.Door hinges fitted on the right hand side of the chamber with front opening Single / Double door. Double lined ‘A’ grade silicon gasket on door as well as chamber body so that like proof tightens the door for better performance with multi pan glass viewing window. Defogger heaters provided with an auto cut – off as well as suitable illumination provided to view the specimen under test.

Performance

Air circulation within the chamber with suitable capacity of fan motor and impeller for uniform distribution of temperature and humidity to maintain within desired limits. Only the impeller will be exposed in the conditioning plenum with drive motor from outside of the chamber. Condition plenum covered with a detachable type sheet for friendly maintenance of the chamber.
Thermal Shock Chamber
Quick responding jacket type air heaters are used for heating system to achieve the set value temperature. Highly uniform temperature distribution minimises variations in test results over multiple specimens. Air heaters are placed in such manner that, there is no direct heat radiation from the heaters on to the test specimen.

Instrumentation System

Programmable controller using large screen display. Instrumentation package features flexible. Other functions are included user friendly operation with TFT LCD touch screen as well as key input, graphical display of program patterns, testing history trend grapes. A no. of programs & profile segments with ramp & soak duration provided for cyclic operation.The controller is able to communicate with many different types of hardware using high speed RS 232/485 communications ports, networking and USB communications for fast downloads. Power failure recovery operation system.Microprocessor PID non programmable controller for Temperature in RE models.P.T 100 sensor is measuring the temperature.
Thermal Shock Chamber

Safety Devices

Tray Drier equipped with an emergency stop switch. High reliability and operator safety. Easy protection of chamber and specimen in case of failure. Chambers stop if the door is opening as operator safety. European style design signal tower.Control circuit over current protection. Thermal fuse. Adjustable adequate safety cut – out against high and low temperatures. Chamber door limit switch. Every electrical functional circuit is equipped its own safety facility which shuts down the functional circuit affected or the entire test chamber in case of a malfunction.

Model Number

Cable Port holes are located on the left or on the right side of the test chamber and shall be used for inserting measurement and control cables, other supply connections or additional equipment with rubber plug.Standard specification shelves and shelf are added as required.Drain out let pipe with suitable fittings.Electrical connection 415 V AC +/- 10%, 3 phase/N/PE 50 Hz, 230 V AC +/-10%, 1 phase.
Model No.Temperature RangeTrays in capacity
ITDCT-250 RERT +5°C to +250°C6 Trays to 196 Trays
ITDCT–200 RERT +5°C to +200°C6 Trays to 196 Trays
ITDCT–150 RERT +5°C to +150°C6 Trays to 196 Trays
ITDCT-100 RERT +5°C to +100°C6 Trays to 196 Trays
ITDCT-250 LORT +5°C to +250°C6 Trays to 196 Trays
ITDCT–200 LORT +5°C to +200°C6 Trays to 196 Trays
ITDCT–150 LORT +5°C to +150°C6 Trays to 196 Trays
ITDCT-100 LORT +5°C to +100°C6 Trays to 196 Trays

Note: LO = Logic programmable Models. RE = Non Programable Models.

Our Tray Dryer Machine Samples

Thermal Shock Chamber

Tray Dryer Chamber

Isotech Technologies
Thermal Shock Chamber

Tray Dryer Chamber

Isotech Technologies
Thermal Shock Chamber

Tray Dryer Chamber

Isotech Technologies
Thermal Shock Chamber

Tray Dryer Chamber

Isotech Technologies

Let’s Talk About your Requirements

Check with our team by submitting a simple form, Our team will get in touch with you soon..!

Call Us: (+91) 96064 55074

    Testimonials

    ISOTECHPL Clients Review

    Industry to provide a comprehensive various range of products and services to the environmental test industry.
    Download PDF

    Other Environmental Test Chambers

    Burn In Chamber

    Cold Chamber



    Stability Chamber


    Burn In Chamber

    Thermal Shock Testing Chamber



    ISOTECHPL

    Frequently Asked Questions!

    Ans: An industrial tray dryer is a type of tray drying equipment used to remove moisture from a wide range of materials, including food, pharmaceuticals, chemicals, and plastics. Tray dryers work by circulating hot air or gas around the trays containing the material to be dried. The moisture is evaporated from the material and carried away by the air or gas.

    Ans: Tray dryer machine offer several advantages over other drying methods, including:
    • Versatility : Tray dryer can be used to dry a wide variety of materials.
    • Efficiency : Tray dryers are a very efficient way to remove moisture from materials.
    • Ease of use : Tray drier are relatively easy to operate and maintain.
    • Cost-effectiveness : Tray dryer machine are a cost-effective way to dry materials.

    Ans: There are several different types of industrial tray dryers, including:
    • Batch dryers : Batch dryers dry material in batches, loading and unloading trays manually or automatically.
    • Continuous dryers : Continuous dryers dry material continuously, feeding trays of material into one end of the dryer and discharging dried material from the other end.
    • Vacuum dryers : Vacuum tray dryers use a vacuum to reduce the pressure around the material being dried, which lowers the boiling point of the moisture and speeds up the drying process.

    Ans: The best way to choose the right tray dryer chamber for your needs is to consult with a reputable tray dryer suppliers like ISOTECH. They can help you assess your specific requirements and recommend the best type of dryer for your application.

    Ans: tray dryer chamber are used in a wide variety of applications, including:
    • Food processing : Drying fruits, vegetables, herbs, and spices.
    • Pharmaceutical production : Drying tablets, capsules, and powders.
    • Chemical manufacturing : Drying chemicals, resins, and polymers.
    • Plastics manufacturing : Drying pellets, granules, and powders.

    Ans: There are several factors to consider when purchasing an tray dryer, including:
    • The type of material to be dried.
    • The desired moisture content of the dried material.
    • The throughput capacity required.
    • The available space.
    • The budget.

    Ans: Regular maintenance is important to ensure the optimal performance and longevity of your tray dryer machine. Maintenance tasks include:
    • Cleaning the trays and dryer interior.
    • Inspecting the seals and gaskets.
    • Checking the airflow.
    • Calibrating the temperature and humidity controls.

    Ans: Some safety precautions to take when operating an tray dryer chamber include:
    • Wearing appropriate personal protective equipment (PPE).
    • Not overloading the trays.
    • Not drying flammable materials.
    • Being aware of the fire hazards associated with drying materials.

    Ans: You can find more information about industrial tray drier chamber by visiting the website of a reputable tray dryer manufacturer like ISOTECH. You can also find information about industrial tray dryers in industry publications and online forums.

    Ans: ISOTECH is a leading tray dryer suppliers with a long history of providing high-quality products and services to its customers. Benefits of working with ISOTECH include:
    • Expertise : ISOTECH has a team of experienced engineers who can help you select the right dryer for your application.
    • Quality : ISOTECH dryers are manufactured to the highest quality standards.
    • Support : ISOTECH provides comprehensive customer support, including installation, training, and maintenance.
