ALTITUDE TEST CHAMBER
Precision High-Altitude Simulation Systems
Reliable • Accurate • Standards-Compliant
Know More
ABOUT THE PRODUCT

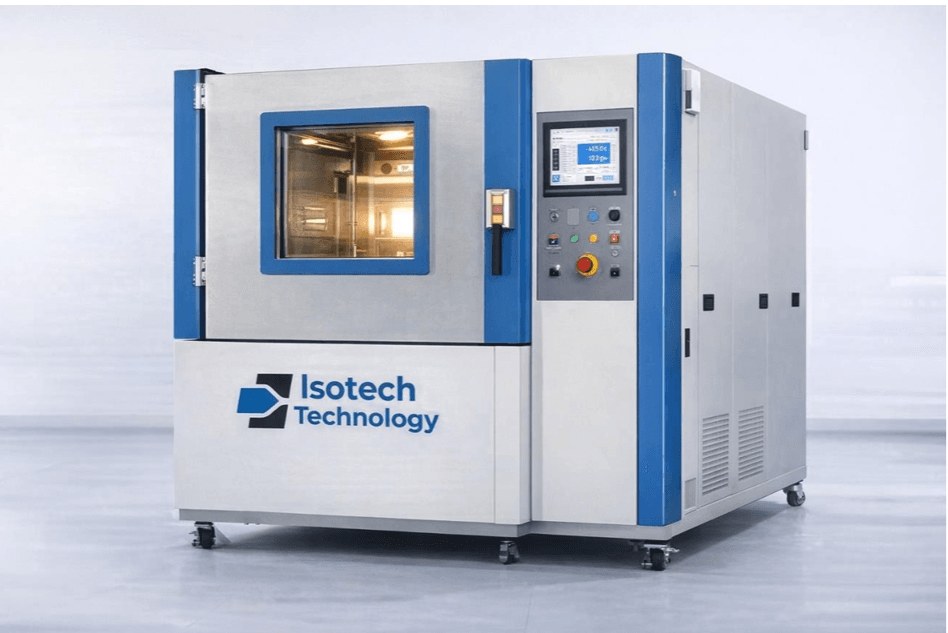

Altitude Test Chambers are advanced environmental simulation systems designed to reproduce high-altitude low-pressure conditions combined with controlled temperature and humidity environments. These chambers enable manufacturers, research laboratories, aerospace organizations, and defense establishments to evaluate product reliability, performance, and safety under extreme atmospheric conditions. Engineered for precision and durability, the system delivers accurate altitude simulation suitable for qualification testing, R&D validation, and regulatory compliance.
Applications
- Aerospace component testing
- Defense electronics qualification
- Avionics & navigation systems testing
- Automotive sensor validation
- Battery & electronic product reliability
- Research laboratories and universities
CORE FEATURES
- High-precision altitude simulation
- Wide temperature testing capability
- Optional humidity control for icing & condensation studies
- PLC-based automated control system
- User-friendly touchscreen interface
- Programmable multi-step test profiles
- Data logging with USB & Ethernet export
- Heated observation window
- Stainless steel corrosion-resistant interior
- Quiet and energy-efficient operation
CHAMBER CONSTRUCTION
- Inner chamber: SS-304 stainless steel
- Exterior body: Powder-coated heavy-duty steel
- Insulation: High-density PUF thermal insulation
- Vacuum-sealed reinforced door
- Double-glazed toughened viewing window
- LED interior lighting
INTELLIGENT CONTROL SYSTEM
- PLC with color touchscreen HMI
- Multi-language interface
- Fully programmable test cycles
- Real-time graph & data monitoring
- Alarm & safety notifications
- PC connectivity & remote monitoring
- Modbus / Ethernet / RS-485 communication
- Installation & commissioning
- Operator training
- IQ / OQ documentation
- Annual Maintenance Contracts
- Calibration services
- On-site technical support
Support & Services
IDEAL FOR
ISO 9001:2015 Certified
Aerospace • Defense • Automotive • Electronics • Research • Certification Labs
PRECISION ENGINEERED FOR EXTREME ENVIRONMENTS – Delivering Performance Where It Matters Most
For technical details, pricing, and customization options, contact our sales team.
ALTITUDE SIMULATION
- Simulated altitude: Up to 30,000 meters
- Pressure range: Atmospheric to ≤ 1 kPa
- Pressure accuracy: ±2% of set value
- Programmable pressure ramp control
- High-efficiency vacuum pump system
TEMPERATURE CONTROL
- Temperature range: –70°C to +180°C
- Stability: ±0.5°C
- Uniformity: ±2°C
- Fast heating & cooling performance
- Energy-efficient cascade refrigeration
HUMIDITY CONTROL (OPTIONAL)
- Humidity range: 20% to 95% RH
- Accuracy: ±3% RH
- Steam injection humidification
- Refrigeration-based dehumidification
SAFETY ASSURANCE
- Over-temperature protection
- Over-pressure & vacuum safety systems
- Emergency pressure release valve
- Compressor overload protection
- Power phase protection
- Door safety interlock system
- Leakage & short-circuit protection
TEST STANDARDS COMPLIANCE
Designed to meet major international test standards:
- JSS Environmental Test Standards
- MIL-STD-810
- IEC 60068 Series
- IS Standard Environmental Tests
- DO-160 Aerospace Testing
AVAILABLE MODELS
Benchtop Models
Compact systems for laboratory testing and small components.
Mid-Size Chambers
Ideal for electronics, automotive parts, and subsystem testing.
Large & Custom Chambers
Designed for aerospace assemblies and large equipment testing.
Walk-In Altitude Chambers
Custom-built rooms for full-scale system testing.
OPTIONAL ACCESSORIES
- Rapid decompression module
- Liquid nitrogen cooling booster
- Additional cable ports
- Custom test fixtures
- CCTV internal monitoring system
- Advanced remote monitoring software
- Redundant vacuum safety system
WHY CHOOSE OUR SYSTEM?
- Robust industrial construction
- High reliability for continuous testing
- Energy-efficient cooling technology
- Low maintenance vacuum system
- Easy installation and operation
- Custom-built solutions available
- Strong after-sales service support
